Use characteristics

1. AC rated voltage: UO/U 0.6/1KV.

2, the highest long-term working temperature: flame-retardant PVC insulation and sheath 70 ° C and 105 ° C; fluoroplastic insulation and sheath 200 ° C and 260 ° C; cross-linked polyethylene insulation 90 ° C; low-smoke halogen-free flame retardant polymerization Olefin 70 ° C; low smoke zero halogen flame retardant crosslinked polyolefin 90 ° C and 120 ° C.

3, the minimum ambient temperature: flame retardant PVC sheath: fixed laying -40 ° C, non-fixed laying -15 ° C; fluoroplastic insulation and sheath: fixed laying -60 ° C; non-fixed laying -20 ° C.

4. The cable installation temperature is not lower than 0 °C.

5, the recommended allowable bending radius: non-armored cable is not less than 6 times the outer diameter of the cable; armored electrical cable is not; less than 12 times the outer diameter of the cable; fluoroplastic insulation and sheathing material cable is not less than the outer diameter of the cable 8 Times.

Basic model and name

NH-KVV: flame retardant PVC insulated and sheathed fire control cable

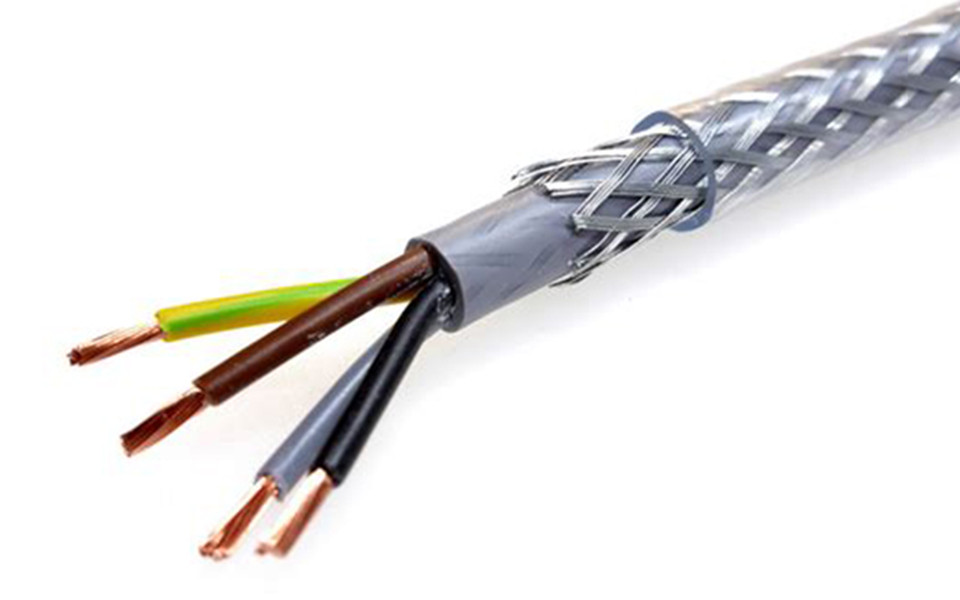

NH-KVVP: Flame-retardant PVC insulated and sheathed copper wire braided shield fire-resistant control cable

NH-KVVP2: Flame-retardant PVC insulated and sheathed copper tape wrapped shield fire-resistant control cable

NH-KFF: fluoroplastic insulated and sheathed fire control cable

NH-KFFP: fluoroplastic insulated and sheathed copper wire braided shield fire resistant control cable

NH-KFFP2: fluoroplastic insulated and sheathed copper tape wrapped shielded fire-resistant control cable

NH-VDVD: low-smoke low-halogen flame-retardant PVC insulated and sheathed fire-resistant control cable

NH-YDVD: Low-smoke, halogen-free, flame-retardant polyolefin insulated and sheathed fire-resistant control cable

NH-KVDVD: low-smoke low-halogen flame-retardant PVC insulated and sheathed fire-resistant control cable

NH-KVDVDP: Low-smoke low-halogen flame-retardant PVC insulated and sheathed copper wire braided shield fire-resistant control cable

NH-KVDVDP2: low smoke low halogen flame retardant PVC insulated and sheathed copper wire braided shield fire resistant control cable

NH-KYDYD: Low-smoke, halogen-free, flame-retardant polyolefin insulated and sheathed fire-resistant control cable

NH-KYDYDP: Low smoke zero halogen flame retardant polyolefin insulated and sheathed copper wire braided shield fire resistant control cable

NH-KYDYDP2: Low smoke zero halogen flame retardant polyolefin insulated and sheathed copper wire braided shield fire resistant control cable

NH-KYJV: XLPE insulated flame-retardant PVC sheathed fire-resistant control cable

NH-KYJVP: XLPE insulated, flame-retardant PVC sheathed copper wire braided shield fire-resistant control cable
