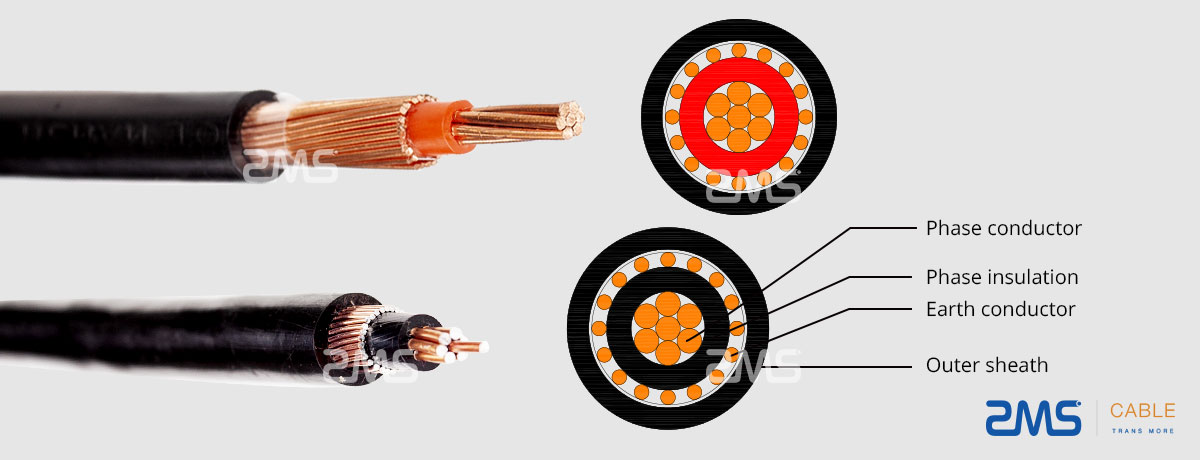

Concentric cables consist of single or multi-core conductors with an insulation layer between the multi-core conductors that effectively prevent electromagnetic interference between the two conductors.
Concentric cables produced by ZMS are typical of most cable insulation types.
The concentric wire is often used as energy supply cables and is most common in power distribution, panels, and street lighting.
Concentric conductor cables are suitable for use in dry and wet locations.
They can be buried directly into the ground or used outdoors with a maximum operating temperature of 70°C (PVC or PE insulation) or 90°C (XLPE insulation) and a service voltage of 600 V in their applications.
Armored concentric conductor cables give them better mechanical strength. When it is buried in the ground, it can improve the ability to withstand pressure, reduce damage from external forces and ensure the proper efficiency of the cable and linked equipment.
What is concentric cable used for?
The concentric conductor 600/1000V is used as an electric service from the power distribution, to transmit the power to the business center, residential and rural areas.
ASTM-B; ASTM-D; UL

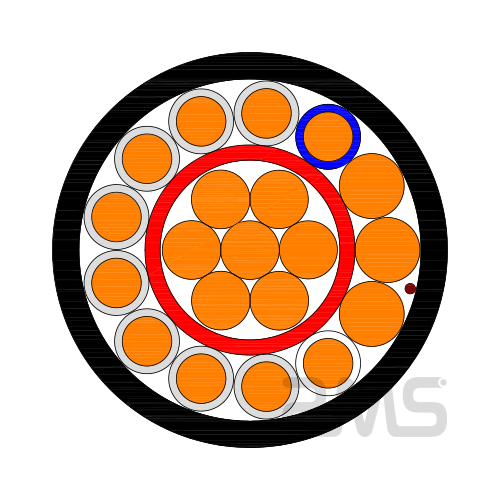

1. Conductor: Copper class 2
2. Insulation: XLPE
3. Cable Inner Sheath: PVC
4. Concentric Conductor Layer: Copper
5. Cable Tape: Non-absorbent material or OEM
6. Cable Outer Sheath: XLPE/PVC/PE
1. Factory direct sale
2. Abundant experiences, good quality, and cheap price
3. Free sample
If you don’t know how to choose the products you need or don’t find the cable type and size you need on this page, don’t worry. Contact us and send us your requirements, and we can help you choose the right cable.
You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shield type, armor type, etc. or you can provide us with cable installation environment, application requirements, etc.
We will serve you wholeheartedly.
ZMS Cable Supplier has a number of quality certifications: ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.
ZMS provides free professional consulting services to provide you with one-stop project solution services and rapid product delivery solutions.
While ZMS provides high-quality cables, we also provide good delivery solutions. While ensuring the safe delivery of products, we provide the best packaging and transportation solutions, greatly reducing customers’ transportation costs.
ZMS cable packaging is provided in the form of wooden reels, corrugated boxes, and coils.
The cable ends are sealed with BOPP self-adhesive tape and a non-hygroscopic sealing cap to protect the cable ends from moisture. We can print the required marks on the outside of the barrel with waterproof material according to customer requirements.
Copper Conductor | |||||
Cable | Conductor | Insulation | Concentric | Outer Sheath | O.D of the cable |
AWG | mm | mm | mm | mm | mm |
2x12 | 7/0.78 | 1.14 | 39/0.321 | 1.14 | 7.74 |
2x10 | 7/0.98 | 1.14 | 25/0.511 | 1.14 | 8.72 |
2x8 | 7/1.23 | 1.14 | 25/0.643 | 1.14 | 9.74 |
2x6 | 7/1.55 | 1.14 | 25/0.813 | 1.14 | 11.01 |
2x4 | 7/1.96 | 1.14 | 26/1.020 | 1.14 | 12.68 |
