Application:

for use in aerial, direct burial, conduit, open tray, and underground duct installation. Its maximum temperature of operation is 70℃( PVC or PE insulation) or 90℃ (XLPE insulation) and its voltage of service for all the applications is 600V.

Standard:

NTP IEC 60502-1 BS7870

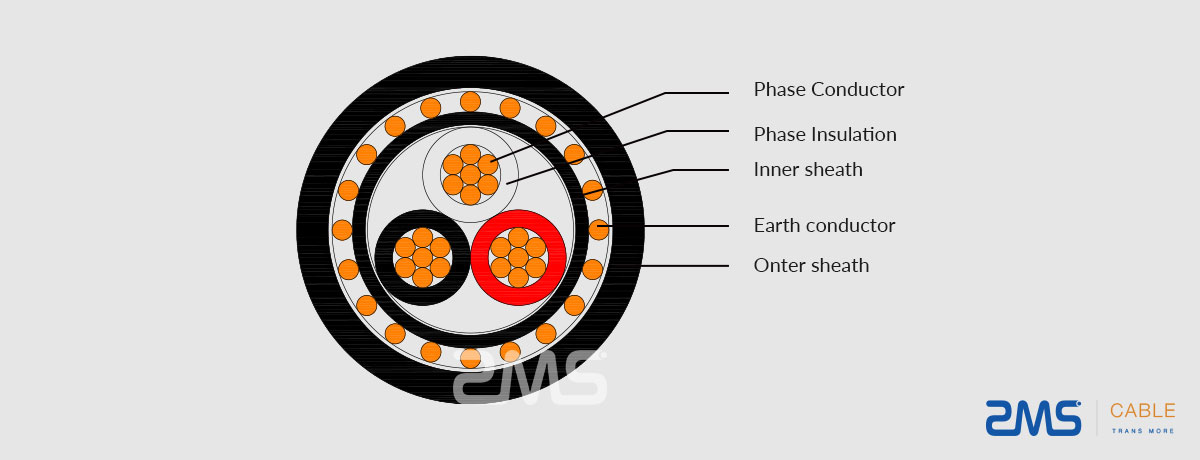

Construction:

1.Conductor: Copper class 2

2.Insulation: XLPE

3.Sheath: XLPE/PE/PVC

Phase Color Code(SNE): Red, Black & White

Phase Color Code (CNE): Balck

Advantages:

1. Rich supply experience with the best price.

2.18 month guarantee period.

3. Sample free available.

Cable Size	Conductor size (AAC)	Insulation thickness (XLPE)	Concentric conductor (AAAC 8000)	Outer sheath thickness (PVC)	Overall Diameter	Cable Mass
mm2	N/mm	mm	N/mm	mm	mm	kg/km
3*10/10	7/1.35	1.0	51/0.50	1.6	18.4	645

Concentric Cable
