Application:

The 600/1000V round aluminum concentric cable is commonly used for service entrance to power transmission.

Standard:

ASTM-B; ASTM-D; UL

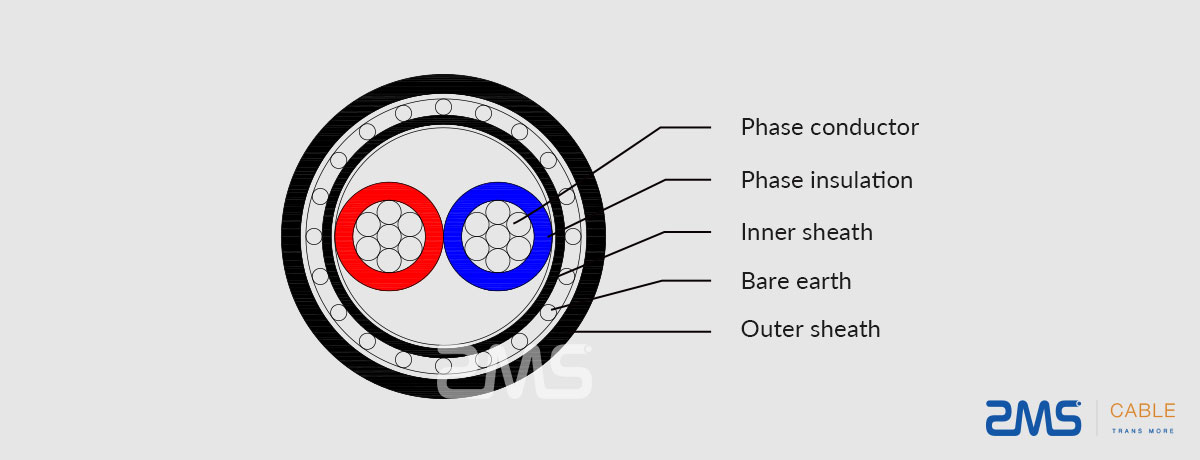

Construction:

1. Conductor: 8000 Series aluminum alloy

2. Insulation: XLPE

3. Cable Inner Sheath: PVC

4. Concentric Conductor Layer: 8000 Series aluminum alloy

5. Cable Tape: Non-absorbent material or OEM

6. Cable Outer Sheath: XLPE/PVC/PE

Advantages:

1. Factory direct sale

2. Abundant experiences, good quality, and cheap price

3. Free sample

Technical Data:

8000 Series Aluminum Alloy Conductor
Cable Type	Conductor	Insulation Thickness	Concentric Conductor	Outer Sheath Thickness	O.D of the cable
AWG	mm	mm	mm	mm	mm
3X8AWG	7/1.23	1.14	65/0.405	1.14	11.3x17.3
3X6AWG	7/1.55	1.14	65/0.511	1.14	13.2x20.0
3X4AWG	7/1.96	1.14	65/0.643	1.52	14.7x22.9
3X2AWG	7/2.47	1.14	65/0.823	1.52	16.6x26.3

Concentric Cable
