NYY power cable is the type of German VDE standard.

NYY-O is equivalent to GB12706 VW-0.6/1KV PVC insulated and sheathed power cable.

NYY-J is equivalent to GB9330 KVW polyvinyl chloride insulated and sheathed control cable.

NYY is used for power and control cables in solid-fit installations and can be used indoors, outdoors, underground, in concrete, and in water.

NYY cable structure:

Single-core or multi-core conductors finely twisted into bundles of bare copper wire, PVC core insulation, core coaxial stranded into a cable, various core colors in accordance with VDE0293, common core-sheath, PVC outer sheath, standard black, flame retardant.

NYY series cable, rated voltage 0.6/1 kV, commonly known as: medium voltage control cable Corresponding national standard: GB 50217-94 (IEC 331 & BS 6387 standard)

Application

NYY cable for fixed installation. Can be used indoors, outdoors, underground, in concrete, and in water.

PVC panel wiring for use in the switch control, relay, and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters, and controllers.

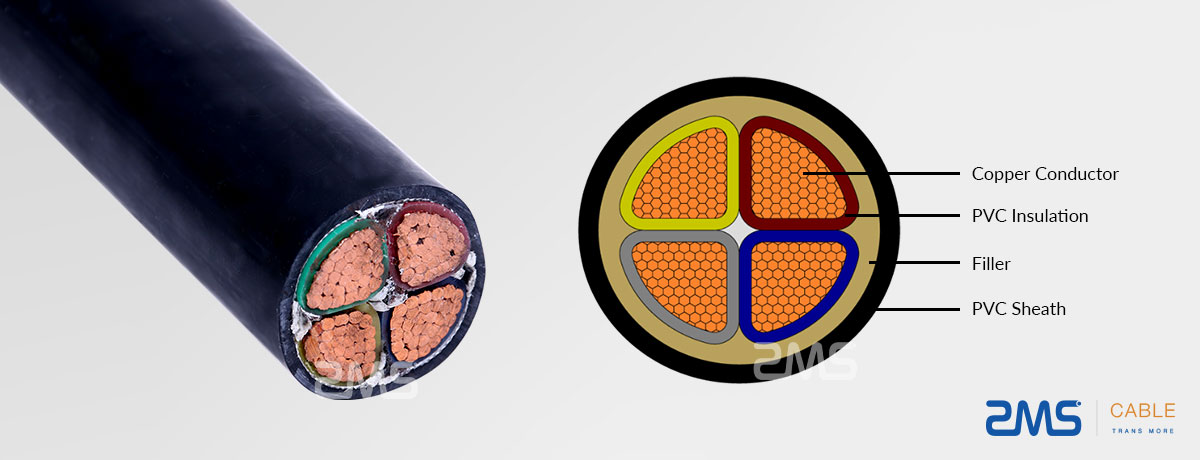

Construction

NYY power cable is the type of German VDE standard.

NYY-O is equivalent to GB12706 VW-0.6/1KV PVC insulated and sheathed power cable.

NYY-J is equivalent to GB9330 KVW polyvinyl chloride insulated and sheathed control cable.

Class J: Yellowish green (1/2), brown, black, gray

Class O: Blue (1/2), Brown, Black, Gray

NYY is used for power and control cables in solid-fit installations, which can be used indoors, outdoors, underground, in concrete, and in water.

Single-core or multi-core wire finely twisted into bundles of bare copper wire, PVC core insulation, core coaxial stranded cable, various core colors in accordance with VDE0293, common core-sheath, PVC outer sheath, standard black, flame retardant.

Conductor: Copper

Nominal Cross-sectional Areas: 6 mm2, 10 mm2, 16 mm2, 25 mm2, 35 mm2, 50 mm2, 70 mm2, 95 mm2, 120 mm2, 150 mm2, 185 mm2, 240 mm2, 300 mm2, 400 mm2, 500 mm2

Insulation: PVC (Polyvinyl Chloride)

Characteristics Voltage Rating(UO/U): 600/1000V

Fixed: -15°C to +70°C

Flexed: -5°C to +50°C

Cable Standards: IEC60502, IEC60228

Technical Characteristics

Operating voltage: 600/1000 V

Test voltage: 4000 V

Dynamic bending radius: 15 x ?

Static bending radius: 12 x ?

Insulation resistance: >100 MΩ x km
