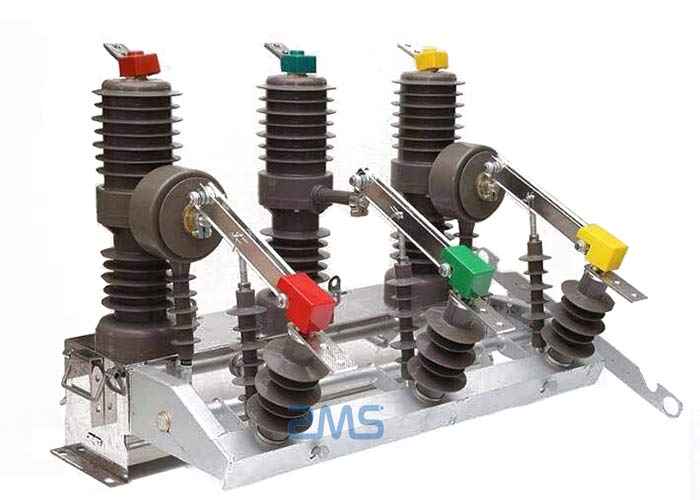

A vacuum circuit breaker contains three main parts: vacuum interrupter, electromagnetic or spring-operated mechanism, bracket, and other components.

The life of a vacuum circuit breaker includes vacuum life, mechanical life, and electrical life.

Vacuum Circuit Breaker Maintenance

1. Overhaul cycle

The interrupter chamber of the vacuum circuit breaker itself does not need to be overhauled. The vacuum circuit breaker can be put into operation as long as it is installed and adjusted as required, and the maintenance in operation is very simple. A vacuum circuit breaker in the process of operation, when the number of operations reached one-fifth of the mechanical life, the power should be stopped for a comprehensive inspection and adjustment. Such as mechanical life, electrical life near the end, check and adjust the cycle should also be appropriately shortened.

2. Check the main content of the adjustment

Inspection and adjustment of the following main aspects of the content.

(1) the main circuit terminal connection part of the fastening situation.

(2) clean the operating mechanism and interrupter housing.

(3) Add lubricating oil to the moving part and replace damaged and corroded parts.

(4) Check contact wear.

(5) Check the vacuum level of the vacuum interrupter.

(6) other parameters adjustment (mainly contact opening distance, compression stroke inspection, and adjustment).

3. The interrupter vacuum identification and replacement

(1) Interrupter vacuum identification

The vacuum degree of the vacuum circuit breaker is directly related to the insulation performance and interrupting the performance of the circuit breaker. In practice, it is difficult to correctly determine the vacuum degree of the interrupter chamber. The common method is to use the frequency withstand voltage method to qualitatively determine the vacuum degree is qualified or not.

(2) Interrupter replacement

The replacement of the interrupter chamber is relatively simple, generally according to the manufacturer's operating instructions for the procedure. After the end of the replacement, the assembly size of the equipment, the circuit breaker stroke, overtravel, open distance measurement, unqualified should be adjusted. And then frequency withstands voltage test.
